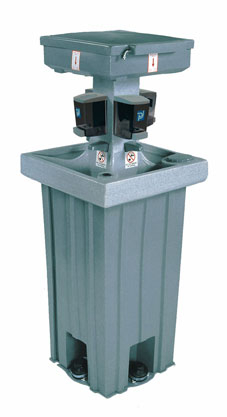

PS14-1000
- Part number: PS14-1000
- Compact, multi-user sink system
- Hands-free foot pump operation
- Can be moved by one person
- Fits in small areas
- Soap and towel dispensers included
- Easier to operate, refill and transport than other sinks
- 1280 pumps of water
| Description | Values |
|---|---|
| Height | 58 in / 147 cm |
| Width | 22.5 in / 57 cm |
| Depth | 22.5 in / 57 cm |
| Weight | 60 lbs / 27 kg |
| Weight Filled | 226 lbs / 103 kg |
| Fresh Water | 20 gal / 76 L |
| Grey Water | 22 gal / 83 L |
| Single Dispenses | 1280 / 1280 |
| Pump Cap per stroke | 2 fl. oz. / 59.1 ml |
| Paper Towel Dispenser | Four packs of single-fold towels (Georgia Pacific 23504). 250 towels per pack. 1000 per wash station. |
| Soap Dispensers | Values |
|---|---|
| Capacity | 4/30 fl. oz. / 4/887 ml |
| Total Capacity | 120 fl. oz. / 3,548 ml |
| Color Options | Granite Gray, Tan, Evergreen & Army Green |
Note: In certain geographical areas of the USA, a warning decal, “Not for Drinking or Cooking” is required. This sink is supplied with PC-000782 Warning Decal, which is located directly below the faucet. It is suggested that this decal be replaced if it becomes damaged or worn out.
All materials, including resin, pigments and additives used to make the plastic components as well as the plumbing components that come in contact with the fresh water supply are U.S. Government Food & Drug Administration (FDA) food grade compliant materials.
All dimensions are subject to change due to environmental factors.
HAND WASH STATION TRAILER
- Huge crowds can have easy access hot water and soap to stay clean and sanitized. Event Planners agree that the little things can mean a lot.
- Stainless steel countertops and sink bowls. Self-closing water saving faucets.
- Commercial quality, easy towing. Large holding tanks and simple maintenance.

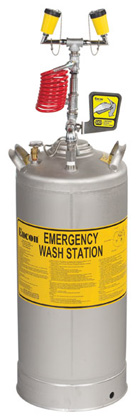

PRESSURIZED EYE WASH STATION 13 GALLON
Pressurized, portable self-contained eyewash/drench hose stations designed for use in areas where plumbed potable water is not available. The heated pressurized portable stations (120 VAC or 12 VDC models) are designed to maintain water temperature in the vessel between 60° and 90°F (15° and 32°C), + 5°F (2.8°C) to help prevent cold water shock to the user. All pressurized portable stations are air tested at factory.
| Description | Values |
|---|---|
| Piping & Valve | ½” BCP piping; 8′ coiled hose; ½” CP bronze stay-open ball valve with CP ball; SS valve stem; SS push plate with actuation graphic |
| Eyewash | ABS plastic heads and wye with SS bead chains securing covers; self-adjusting 0.4 gpm (1.5 lpm)* |
| Tank | Tank304 SS with 13-gallon capacity |
| Relief Valve | Brass; automatically opens at 125 psi |
| Gauge | Custom face gauge visually indicates tank pressure status |
| Heated Option | Models 01103004, 01103005 and 01103006 include thermostatic control that provides heated water, maintained at a temperature between 60-90°F |
| Water | One 8 oz Hydrosep® bottle included |
| Treatment | treats 5 to 20 gallons for 90 days |
| Ship Weight | 32 lbs (14.52 kg) 34 lbs (15.42 kg) with drench hose |
